NC200

Portable

NC200

Temperature range from -20°C to 550°C
1/2.7 inch HD CMOS, 1920x1080 resolution
Web-side control

Technical specifications

Temperature/measure field

Low: -20°C to 150°C; High: -20°C to 550°C

Precision

±2°C or ±2% (whichever is greater)

Size/weight

≤105mm×71mm×30mm - 300g

Relative humidity

≤95%, non-condensing

Description

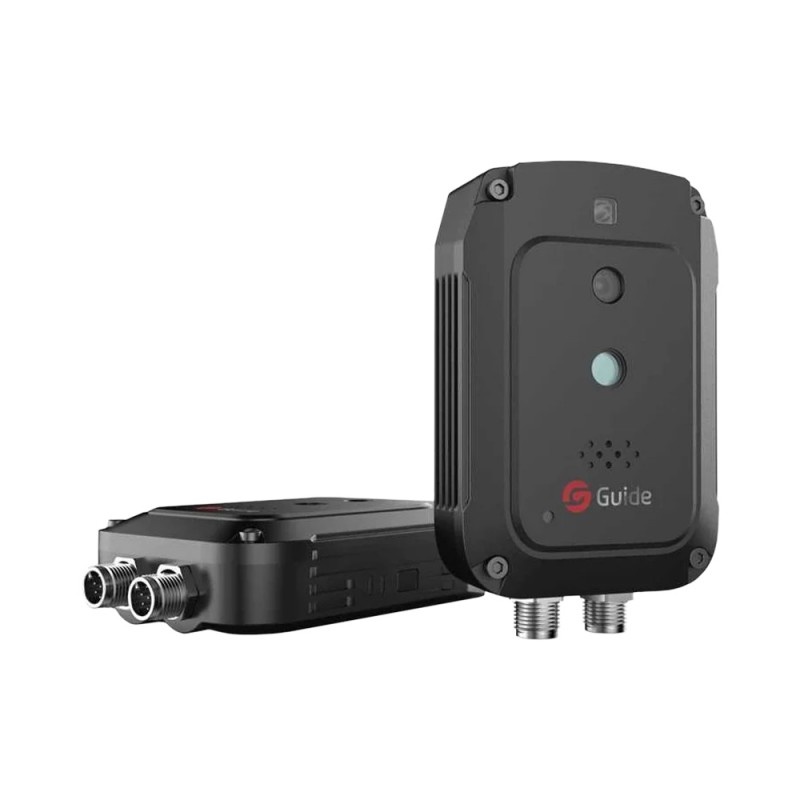

NC200 is developed based on 256x192 wafer infrared module, which integrates an infrared thermal imager and a visible light camera. Small size, breaking through installation restrictions in narrow spaces, and flexible in deployment. Provide continuous temperature data collection, analysis and alarm for the uninterrupted state monitoring of key electromechanical equipment.

It is suitable for temperature monitoring and fire detection of electrical equipment in narrow spaces and confined spaces such as data centers, power distribution switch cabinets, wind turbines, storage, hazardous chemical warehouses, power distribution rooms, computer rooms, and charging piles etc.
