Hammer II
HAMMERIIH6
Hammer II
- NETD <15 mK
- Automatic focus
- Resolution up to 640×480
- Reporting software included
Template
Resolution
NETD
Info Request
Prodotti
Template:
H6
Resolution:
640*480
NETD:
≤15mK
Template:
H4
Resolution:
480*360
NETD:
≤15mK
Template:
H3+
Resolution:
384*288
NETD:
≤15mK
Template:
H3
Resolution:
320*240
NETD:
≤15mK
Template:
H2
Resolution:
256*192
NETD:
≤15mK
Technical specifications
Size/weight
≤1.24 kg (including standard lens and battery)
Battery
Fast-charging lithium-ion battery, 90% charge in 1 hour (@ 0–45°C)
Display
800x480 resolution, 4.3" LCD screen
Description

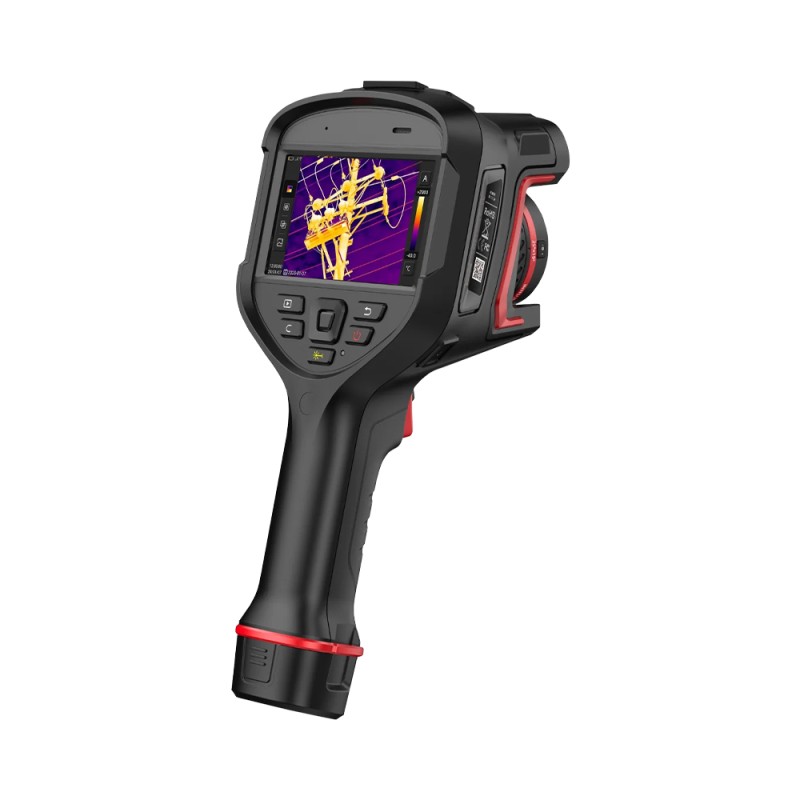

High-Precision Hammer-Style Infrared Camera is specifically designed for industrial inspections and electrical grid maintenance. Equipped with a proprietary self-developed high-sensitivity detector (NETD <15mK, 640×480 resolution), its 50Hz high frame rate and wide temperature measurement range ensure precise capture of abnormal heating points. Equipped with a single-lens dual-FOV design, it instantly switches between wide-angle and narrow-angle views without lens changes. This enables seamless adaptation to complex scenarios, efficiently handling both long-distance inspections and close-range temperature measurements.
Complete ApexVision S1 System Architecture
Guide's next-generation thermal imaging solution is engineered to elevate the infrared imaging performance of temperature measurement devices at the system level. In any environment, it produces cleaner, finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.
TwinView DFoV Lens
Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarios with unmatched versatility.
50Hz High Frame Rate
50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections.
90% Charge in 1 Hour
Charge to 90% in 1 hour, minimizing downtime for critical missions.
2000℃ Ultra-High Temp
Covers -40℃ to 2000℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.
5 Focus Modes
5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.
PerIRVision Panoramic Stitching
AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.
Local Dimming
Features 4 LevelSpan modes (A, M, S, L), where mode L enables real-time target framing. Touch to move the region, dynamically enhancing contrast in focused areas while highlighting potential anomalies.
