E Line

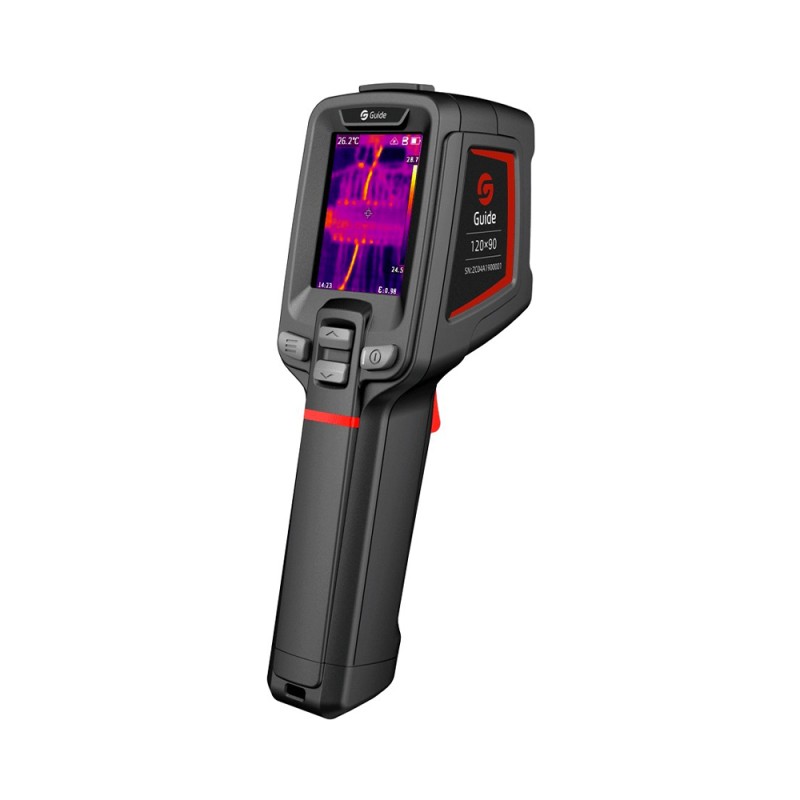

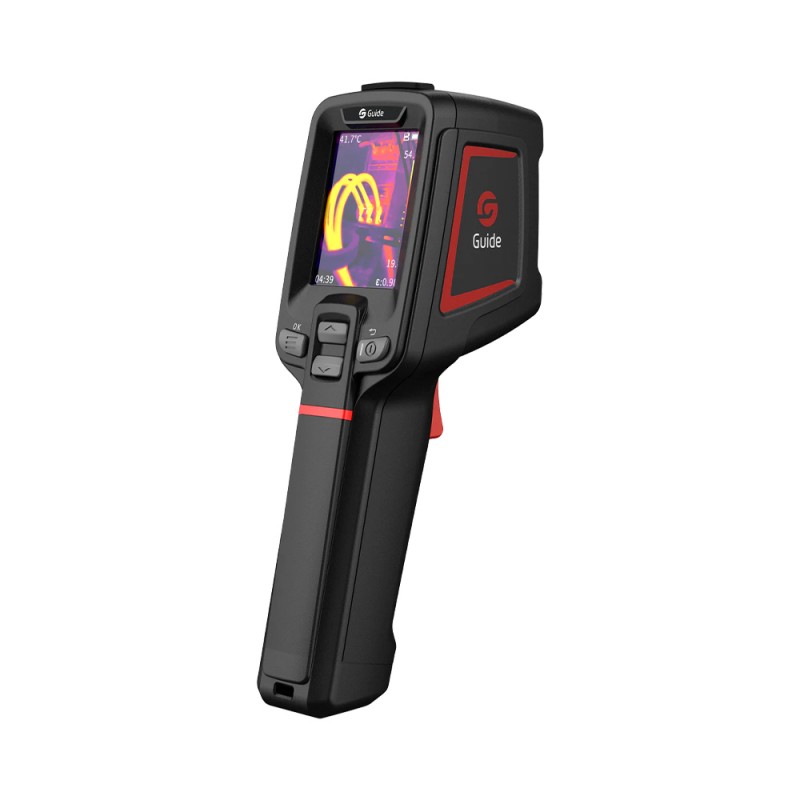

Tool-like thermal camera Linea E Guide Sensmart

Portable

E Line

IR resolution 120×90@17μm (E1 and E1+), 256×192@12μm (E2 and E2+)
60mK NETD (E1 and E1+), 45mK NETD (E2 and E2+)
Measuring range -20°C~550°C
Frame rate 25Hz/9Hz

Technical specifications

Temperature/measure field

Support auto-switching: -20°C to 150°C, 0°C to 550°C

Precision

±2°C or ±2%, whichever is greater

Size/weight

194×61.5×76mm - 355g (E1 e E1+), 194×61.5×76mm - 375g (E2 e E2+)

Battery

Rechargeable lithium-ion battery, non-removable - 8 hours (E1 e E1+), 11 hours (E2 e E2+)

Display

2.4" LCD

Description

256x192/120x90@12μm infrared detector
Based on the self-developed 12μm uncooled infrared detector, tool-like thermal camera E line provides two configurations of 256×192 and 120×90 infrared resolution, which features a lower consumption with a smaller size.

Real-time IR-Perfclear technology
The real-time IR-Perfclear technology breaks through the size limitations of infrared detector, it achieves a 4x enhancement in image quality through real-time computational optimization. This delivers higher quality images with richer details and crystal-clear clarity.

Wide measurement range, automatic switching
With a wide measurement range from -20℃ to 550℃ (-20℃-150℃ / 0℃-550℃) and automatic switching, tool-like thermal camera E line can meet the diverse demands of more industries with more accurate temperature measurement.

Infrared & visible light enriches the image display
Equipped with a thermal imaging sensor and visible light camera, tool-like thermal camera E line provides 4 image modes and 6 color palettes, helping users to observe and analyze the heat distribution of targets more intuitively.

Convenient Sharing Via Mobile APP Connection
By connecting the Wi-Fi, users can remotely access to phone album and share conveniently via the mobile APP. Additionally, tool-like thermal camera E line can be controlled in real-time via the mobile APP for taking photos and recording videos. (It is not valid for e1).

Video streaming
Through Wi-Fi connection, data can be transmitted to PC analysis software instantly, providing users with recording and real-time analysis capabilities.
