ADT760A
ADT760A-LLP
ADT760A
- Generator and Automatic Controller from 1Pa to 25Bar
- Full-HART communicator with Upgradable DD libraries
- Automatic Task Procedures with calibration points
- Voltage inputs with integrated 24V power supply
- CPS anti-contamination system for liquids/dusts
Template
Max Pressure range
Barometric Sensor
Info Request
Prodotti
Template:
Differential LLP
Max Pressure range:
from ±0.62mBar to ±75mBar
Barometric Sensor:
No
Template:
D
Max Pressure range:
from ±25 mBar to 2,5 Bar
Barometric Sensor:
No
Template:
MA
Max Pressure range:
from ±0.7 Bar to 25 Bar
Barometric Sensor:
Yes
Technical specifications
Size/weight
235 x 110 x 70 mm / 1.8 kg)
Battery
Rechargeable Li-Ion battery, typically 10 hours of operation, recharges in less than 4 hours
Vibrations & Shocks
Vibration: 4 g (20 to 2,000 Hz); Shock: 8 g
Display
Color 854 x 480 TFT 4.95-inch touch screen
Channels
Four total: one electrical, one internal pressure, two external pressure (measure only)
Enclosure IP Rating
IP52 water and dust proof
Communications
Bluetooth, Wi-Fi and USB
HART Communications
Optional (ADT760A-X-DL model)
Multi Lingual Interface
English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian
Pump Life
>500.000 cycles
Power
Rechargeable Li-Ion battery, external power: 110/220 V power adapter 10 V
Software
ACal, Land, LogII
Warranty
1 year (excludes battery)
Certification
ISO 17025 accredited certificate with data included
Description

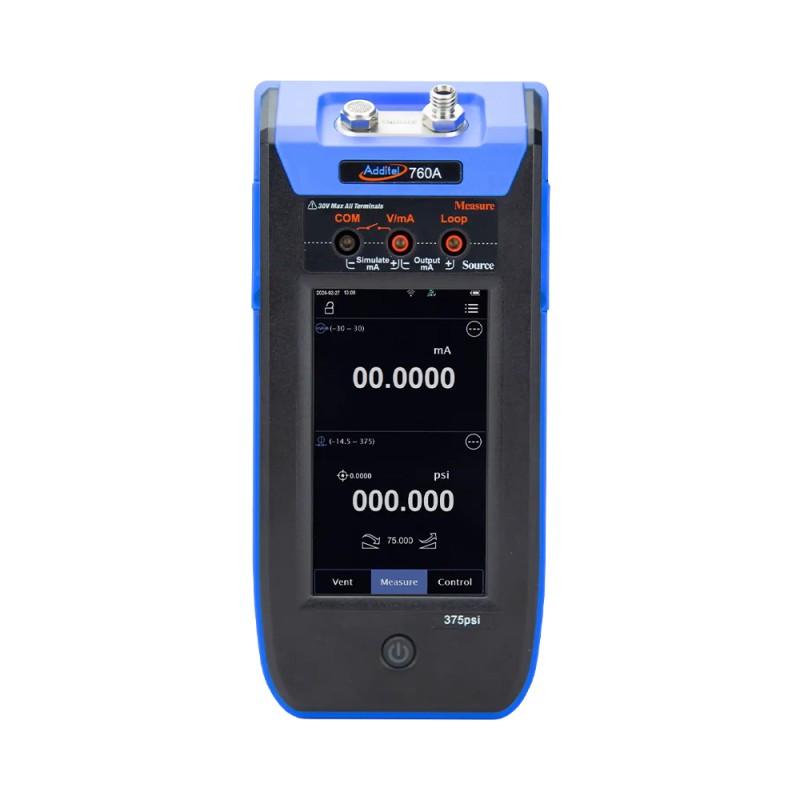

The Additel 760A is a high-performance automatic handheld pressure calibrator designed for precision and portability in the field. Weighing less than 4 lbs (1.8 kg), this integrated device replaces bulky manual pumps with a built-in electric pump, internal controller, and a precision pressure sensor. Optimized for instrumentation technicians, the ADT760A offers a seamless user interface via a new capacitive touch screen, allowing users to generate and control pressure by simply entering the desired setpoint. With four distinct channels, including internal pressure, external pressure (2 channels) and electrical measurement, it serves as a comprehensive tool for pressure calibration and maintenance of critical process infrastructure.
Engineered to enhance workflow efficiency, the ADT760A introduces significant technical upgrades over its predecessor, including an upgraded range (375 psi), an improved touch screen, a full-capability HART field communicator, and a non-PC version option (ADT760S). A new accessory is also available: an attachable Contamination Prevention System to protect internal components. This multifunction documenting process calibrator supports automated task documentation and data logging, reducing the need for manual record-keeping, as well as HART communication capabilities for advanced pressure sensors. Whether performing routine transmitter calibrations or complex field diagnostics, the Additel 760A provides a robust, automated solution that bridges the gap between lab-grade accuracy and rugged field reliability.
