H3
Portable
H3
H3
- 320x240pxl IR
- 5MP Visible Camera
- Auto Focus
- Mobile App & Software report
Technical specifications
Temperature/measure field
Support auto-switching: -40°C to 150°C, 0°C to 650°C, Optional 500°C to 2000°C (High temperature lens is required)
Precision
±2°C or ±2%, whichever is greater
Size/weight
292×125×125mm - 1.2kg (with battery)
Battery
Lithium-ion rechargeable battery - 5 hours
Display
4.3" LCD, touch screen, 800×480
Description

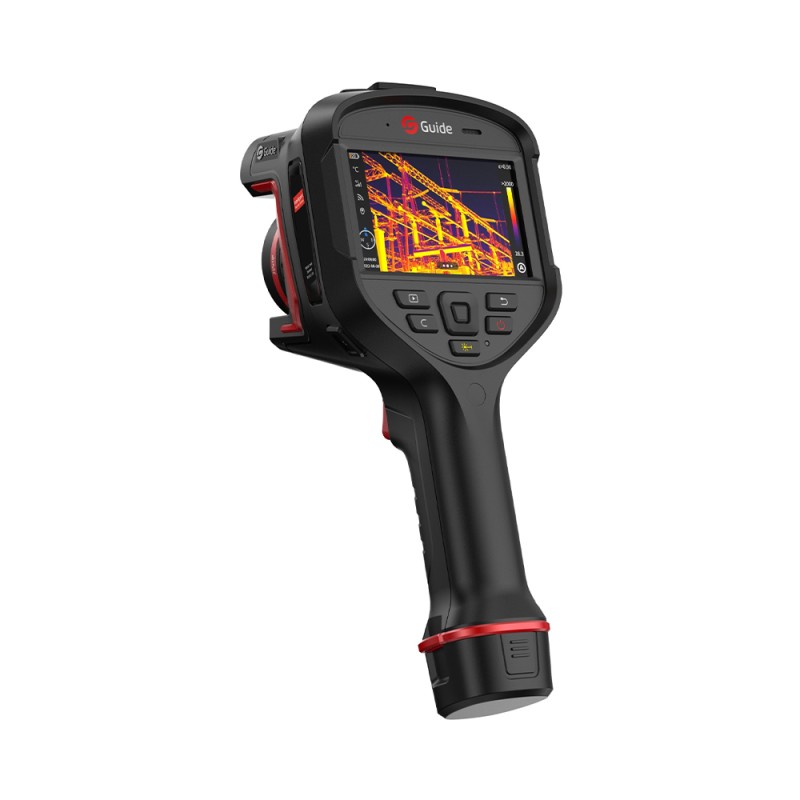

With a built-in self-developed high-sensitivity IR detector, a 5MP visible light camera, and 5 focusing modes, the high-precision thermal camera H3 designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic "hammer" shape.
High-sensitivity IR Detector
A new generation of self-developed infrared focal plane detectors with a resolution of 320x240 coupled with super-resolution reconstruction for high-quality imaging
30Hz IRGD Frame Rate
IR video of raw data with frame rates up to 30Hz, ready to screenshot for temperature analysis
Wide-range Measurement with Rich Application Scenarios
Temperature measurement range -40℃ to 650℃, up to 2000℃ (with high-temperature lens)
Real-time Presentation of Intuitive Temperature Data
IR, VL, MIF, and PIP modes provide a visual view of the target temperature data and automatically present the highest, lowest, and central temperatures of the full screen
OTA Upgrade for the Latest System Version
The device can be upgraded by connecting to the network.
