Infrared
Laser
IR20814

IR20

Advanced Head Fixed Pyrometer + Display + Keyboard + Laser

  • Temperature range up to 2200°C
  • Close focus 0.5mm
  • Dual Laser Pointer with true identification target size
  • Double Alarm tab
  • Advanced Signal Processor

Want to talk to an expert?

Do you want to speak to a product expert IR20?

Template
Temperature range
Max head temperature
Resolution
Response time
Cable
Request for quote
Impiego: Generic
Template: 814
Temperature range: -50°C to 975°C
Max head temperature: 85°C
Resolution: 75:1
Response time: 120ms
Cable: 3, 8, 15mt
Impiego: Metals
Template: 230H3
Temperature range: 250°C to 1800°C
Max head temperature: 85°C
Resolution: 300:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 230H2
Temperature range: 200°C to 1500°C
Max head temperature: 85°C
Resolution: 300:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 230H1
Temperature range: 150°C to 1000°C
Max head temperature: 85°C
Resolution: 300:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 230H
Temperature range: 100°C to 600°C
Max head temperature: 85°C
Resolution: 100:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 230L
Temperature range: 50°C to 400°C
Max head temperature: 85°C
Resolution: 60:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 160H1
Temperature range: 490°C to 2000°C
Max head temperature: 85°C
Resolution: 300:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 160H
Temperature range: 385°C to 1600°C
Max head temperature: 85°C
Resolution: 300:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 160L
Temperature range: 250°C to 800°C
Max head temperature: 85°C
Resolution: 150:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 100H1
Temperature range: 800°C to 2200°C
Max head temperature: 85°C
Resolution: 300:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 100H
Temperature range: 650°C to 1800°C
Max head temperature: 85°C
Resolution: 300:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 100L
Temperature range: 485°C to 1050°C
Max head temperature: 85°C
Resolution: 150:1
Response time: 1ms
Cable: 3, 8, 15mt
Impiego: Molten Metals
Template: 050
Temperature range: 1000°C to 2000°C
Max head temperature: 85°C
Resolution: 150:1
Response time: 1ms
Cable: 3, 8, 15mt
Impiego: Quick
Template: 814 FAST
Temperature range: -50°C to 975°C
Max head temperature: 85°C
Resolution: 50:1
Response time: 9ms
Cable: 3, 8, 15mt
Template: 400
Temperature range: 0°C to 500°C
Max head temperature: 70°C
Resolution: 33:1
Response time: 300µs
Cable: 3, 8, 15mt
Impiego: Plastic film
Template: 790
Temperature range: 100°C to 1200°C
Max head temperature: 85°C
Resolution: 45:1
Response time: 150ms
Cable: 3, 8, 15mt
Template: 390H
Temperature range: 400°C to 1650°C
Max head temperature: 85°C
Resolution: 45:1
Response time: 1ms
Cable: 3, 8, 15mt
Template: 390
Temperature range: 200°C to 1450°C
Max head temperature: 85°C
Resolution: 45:1
Response time: 1ms
Cable: 3, 8, 15mt
Impiego: Incinerator
Template: 460H
Temperature range: 400°C to 1650°C
Max head temperature: 85°C
Resolution: 45:1
Response time: 10ms
Cable: 3, 8, 15mt
Template: 420H
Temperature range: 400°C to 1650°C
Max head temperature: 85°C
Resolution: 45:1
Response time: 10ms
Cable: 3, 8, 15mt
Impiego: Glass
Template: 510H
Temperature range: 250°C to 1650°C
Max head temperature: 85°C
Resolution: 70:1
Response time: 80ms
Cable: 3, 8, 15mt
Template: 510L
Temperature range: 100°C to 1200°C
Max head temperature: 85°C
Resolution: 45:1
Response time: 120ms
Cable: 3, 8, 15mt

Technical specifications

Temperature/measure field
From -50°C to 2200°C
Optical resolution
Up to 300:1
Response time
Up to 1mS
Room temperature
Up to 85°C without cooling
Storage
From -40°C to +85°C
Spectral band
8-14μm, 1.6μm, 1μm, 2.3μm, 3.9μm, 4.2μm, 4.6μm, 5.1μm and 7.9μm
Emissivity/Transmittance
Adjustable between 0.100 - 1.100
Work temperature
-20 up to 85°C (laser on up to 50°C); 10-95% RH non-condensing; Electronics : 0 to 85°C
Vibrations & Shocks
IEC 68-2-6: 3G. 11-200Hz, any axis; IEC 68-2-27: 50G, 11mS, any axis
Degree of protection
IP65 (NEMA-4)
Analog output
0/4-20mA (500ohm), 0-5/10V, Tc J,K, Alarm
Digital output
Relay : 2x60V DC / 42 V ACeff; 0,4A; optically isolated; USB, RS232, RS485, CAN, Profibus, Ethernet
Power supply
8..36 V DC
Functions
Peak hold, valley hold, average, extended hold, threshold and hysteresis.

Description

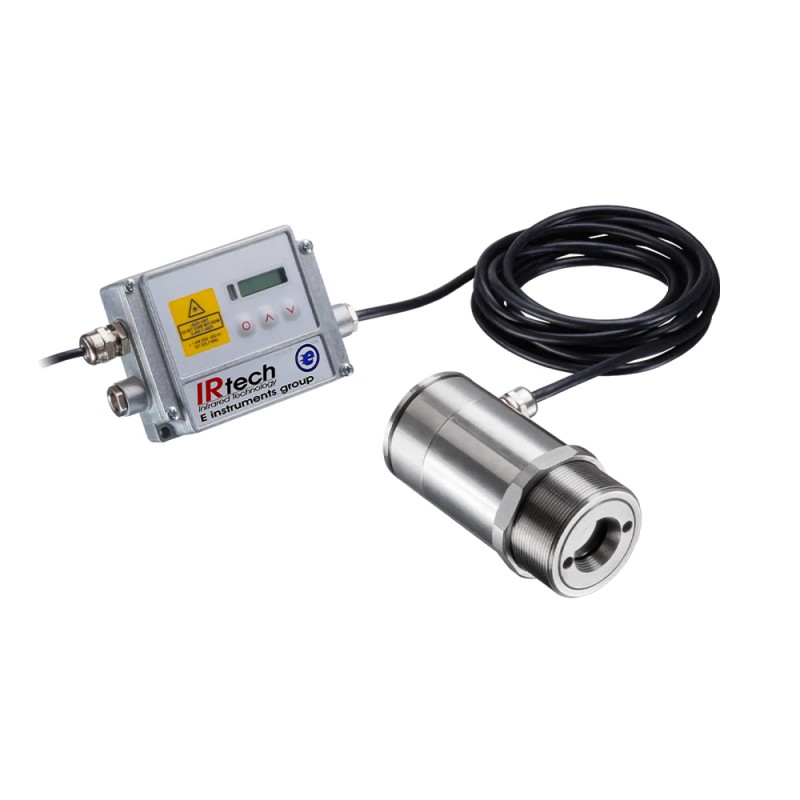

IRtech Radiamatic IR20 LS series is an advanced process infrared thermometer composed of a measuring head and separate electronics. The control unit makes start-up and maintenance easy.

All settings including emissivity are available via the panel and can be changed with the integrated keyboard.

The double laser pointer facilitates the alignment of the pyrometer by indicating the actual measurement area. The laser can be turned on directly from the keyboard or remotely with the digital interface.

The temperature of the measuring head is monitored and the laser is automatically switched off above 50°C.

The modular expansion slot will allow you to add expansion cards such as USB, RS232, RS485, Profibus, Can, Ethernet digital interfaces and the card with two alarm relays. This allows you to avoid installing an additional indicator.

The advanced signal processor allows the use of functions such as averaging, peak picker, remote emissivity programming, ambient temperature compensation and many other functions.

Analog input: external emissivity, ambient temperature compensation, trigger

Including remote control unit with display and keyboard.
