IR80
Infrared
Laser
Laser
IR80VLS120L
IR80
- Temperature range up to 3000°C
- Attenuation up to 95% (2 colours)
- Laser target pointer
- 2 alarms card
- Signal processing
- Reflex camera for pointing
Technical specifications
Temperature/measure field
from 250°C to 3000°C
Precision
±(0,5% rdg +2°C)
Repeatability
± 0,3% rdg
Response time
1 mS
Room temperature
-20 to +60°C / 10-95% RH non-condensing (50°C with laser on)
Storage
from -40 to +85°C
Battery
8..30 V DC
Vibrations & Shocks
CEI 68-2-6: 3G. 11-200Hz, any axis; IEC 68-2-27: 50G, 11mS, any axis
Analog output
4-20mA
Digital output
Open collector alarm 0-30V/500mA RS485Modbus RTUUSB
Description

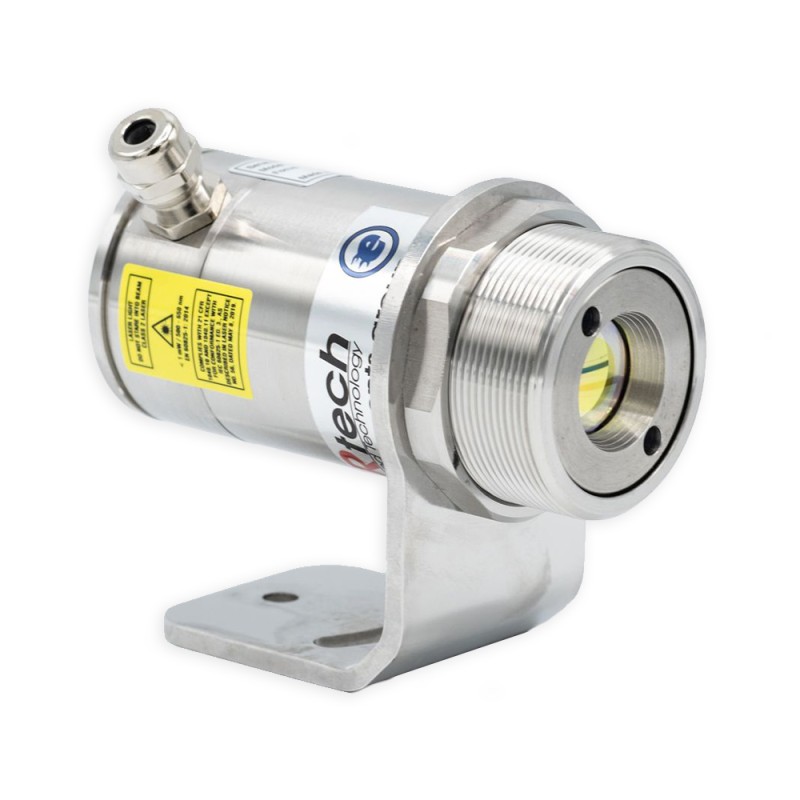

IRtech Radiamatic IR80 series is a 2-color smart infrared thermometer. The unit is powered by the loop providing scalable output on 4-20 mA. An USB interface is available for direct PC connection for online operation or setting through the software. An alarm output is available to avoid the use of an additional panel meter.
The smart signal processor allow fast measurements applying also digital filters like average or advanced procedure as pick picker and hold. The dual laser aiming simplify the alignment of the thermometer on the target identifying the real area of measurement.
The laser can be powered and switched on directly by keyboard or remotely by digital interface. Video output can be used for aiming in addition to laser pointer.
