TD2
Leak detection
TD2
TD2
- Up to 64 MEMS digital microphones
- 3.5-inch touchscreen LCD display
- Measures from 0.3 to 100 meters, 13MP camera
- AnalyzIR professional thermal and acoustic image analysis software
- Compact and lightweight (770g)
- 2 batteries, continuous work ≥ 4 hours per battery
Technical specifications
Size/weight
770g
Battery
2 batteries, continuous work ≥ 4 hours per battery
Degree of protection
IP54
Image resolution
13 megapixel industrial digital camera
Description

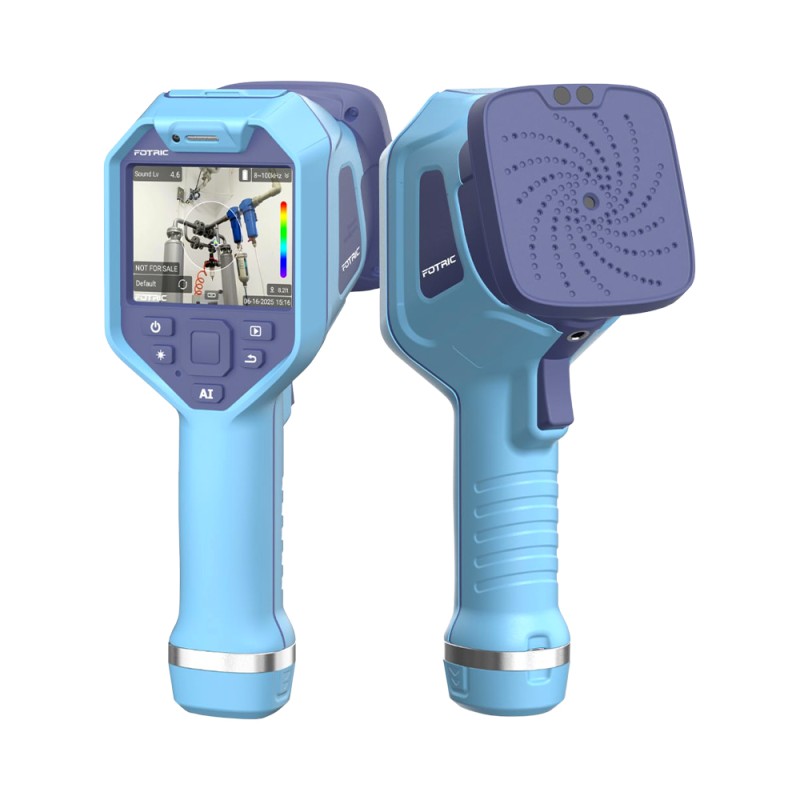

The FOTRIC TD2 acoustic imaging camera can detect not only audible sound (20Hz–20kHz), but also high-frequency ultrasonic signals that are beyond the range of human hearing.
This means it can easily capture things like:
Leaks in the compressed air system:Because gas leaks emit high frequency turbulence noise, the TD2 can quickly detect even the smallest leaks in compressed air pipelines.
Vacuum System Leaks: The TD2 accurately captures subtle leak sounds in vacuum systems that human ears cannot hear, allowing for quick leak location without contact or equipment damage.
Loose joint vibrations during operation: The TD2 detects abnormal high frequency sounds caused by loose screws while the equipment is in operation.
Tyre air leaks: View and locate the problem in real time without requiring a shutdown.
